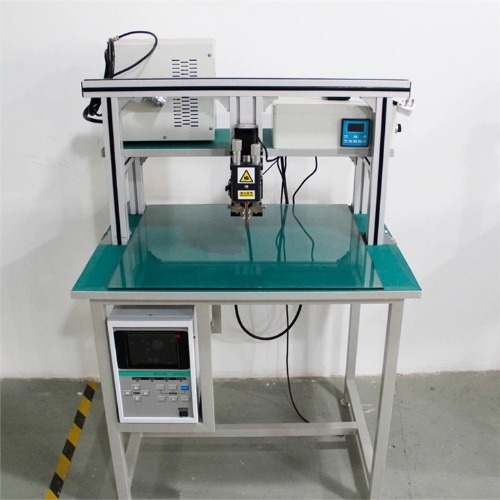

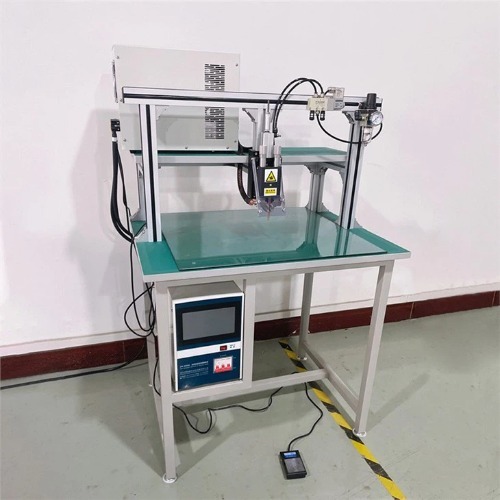

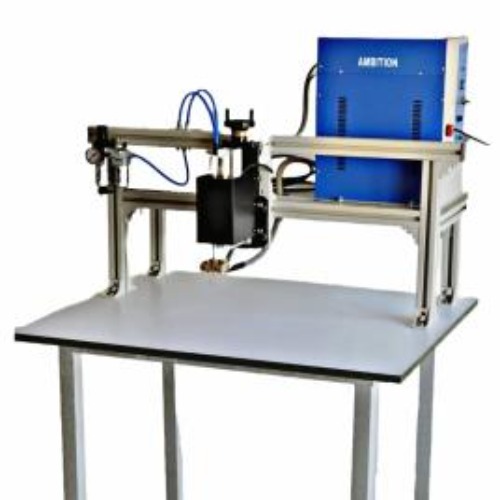

Manual spot welding machine 5000A / 8000A

Manual spot welding machine 5000A / 8000A Specification

Size
36INCH*30INCH*30INCH

Features
TRANSFORMER BASED,THYRIDTOR BASED, SCR CONTROLLED PANEL, HEAT CONTROL+ TIMER

Usage & Applications
USES APPLICANS ELECTRIC VEHICLES BATTERY PACKS SOLAR LIGHT BATTERIES MOBILE AND LAPTOP POWER BANKS DRONE BATTERY PACK ALL OTHERS BATTERY PACKS All type of Lithium battery machine machines

Shelf Life
6 Years

Batteries Type
Others

Battery Capacity
Other

Nominal Voltage
NPUT VOLTAGE, 220V/ 50Hz, 1PHASE Volt (V)

Weight
6kw

Manual spot welding machine 5000A / 8000A Trade Information

Minimum Order Quantity
1 Piece

Payment Terms
Cash Against Delivery (CAD), Cash Advance (CA), Cash in Advance (CID), Cheque, Letter of Credit (L/C)

Main Export Market(s)
Asia, South America

Main Domestic Market
All India

About Manual spot welding machine 5000A / 8000A

SPECIFICATION

WELDING CURRENT 5000A / 8000A

STRIP THICKNESS PURE NICKEL STRIP UPTO 0.2mm

PLATED NICKEL STRIP UPTO 0.3MM

INPUT VOLTAGE 220V/ 50Hz, 1PHASE

POWER CAPACITY 8Kw

FEATURES TRANSFORMER BASED,

THYRIDTOR BASED,

SCR CONTROLLED PANEL,

HEAT CONTROL+ TIMER

TIMER RANGE 10-500 millisecond

ELECTRODE SIZE DIAMETER 3.00 - 3.80mm

WELDING PRESSURE 0.2-1.0kgf ADJUSTABLE

TABLE SIZE 36INCH*30INCH*30INCH

WORKING AREA 30INCH*30INCH*6INCH

APPROX WEIGHT 80Kg

USES APPLICANS

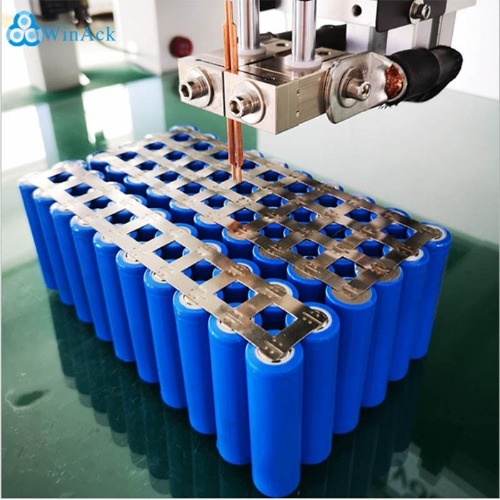

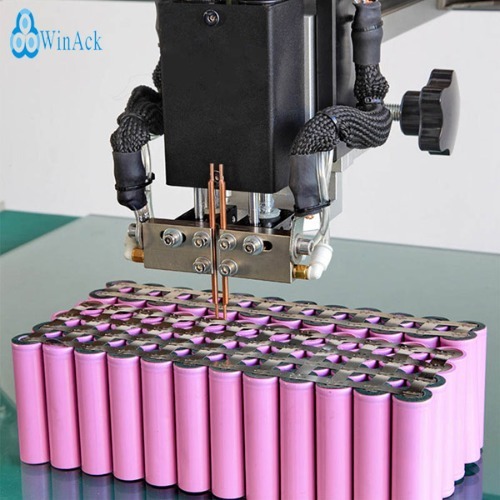

ELECTRIC VEHICLES BATTERY PACKS

SOLAR LIGHT BATTERIES

MOBILE AND LAPTOP POWER BANKS

DRONE BATTERY PACK

ALL OTHERS BATTERY PACKS

All type of Lithium battery machine machines

Adaptable for Modern Battery Production

This spot welding machine is tailored to meet the demands of high-volume, diverse battery pack assembly, including electric vehicle and solar power battery manufacturing. The transformer-based and SCR-controlled system ensures stable and high-quality welds, making it suitable for manufacturers and suppliers working with different lithium battery types.

Efficiency and Safety Combined

Featuring advanced heat and timer controls, this machine delivers accurate welding results while maintaining operator safety. Its sturdy build and user-centric design make it ideal for assembly lines and workshops, reducing downtime and enhancing productivity. Exporters and manufacturers benefit from its reliable performance and extended shelf life.

FAQs of Manual spot welding machine 5000A / 8000A:

Q: How does the Manual Spot Welding Machine 5000A / 8000A operate?

A: The machine functions through a combination of transformer and SCR-controlled panels, using a 220V/50Hz single-phase input. You simply set the heat and timer as per your battery pack requirements and execute welding cycles manually to join tabs or connectors efficiently.

Q: What types of applications is this spot welding machine best suited for?

A: This spot welding machine excels in assembling various battery packs, including those for electric vehicles, solar lights, power banks (mobile/laptop), drones, and other lithium-based batteries, making it highly versatile in battery manufacturing and repairs.

Q: When should I use this machine in my manufacturing process?

A: Use this machine during the final assembly stage when you need to securely weld battery tabs or connectors. Its precise heat and time control make it ideal for ensuring strong and reliable electrical connections in battery packs.

Q: Where can this spot welding machine be installed?

A: Thanks to its compact size (36x30x30 inches), the machine can be conveniently installed in factory assembly lines, workshops, or small manufacturing units. It requires access to a 220V/50Hz single-phase power supply for efficient operation.

Q: What are the key benefits of using this spot welding machine?

A: The main advantages include reliable and consistent welds, fast cycle times, easy operator controls, long operational life (shelf life of 6 years), and compatibility with a wide range of lithium battery applications, delivering enhanced productivity to manufacturers.

Q: What process controls does the machine offer for precise welding?

A: Equipped with SCR-controlled heat management and an integrated timer, the machine enables fine adjustments of welding parameters, ensuring accurate joinings without damaging battery components.

Q: Who can benefit from using this spot welding machine?

A: Manufacturers, exporters, and suppliers of battery packsespecially those dealing with electric vehicles, solar energy solutions, consumer electronics, and UAVswill find this machine to be a robust addition to their battery assembly and fabrication facilities.
